ELIMINATE THE GUESSWORK. This versatile mount can be installed on EITHER the Driver or Passenger side of your Sprinter van. Whether you have a Standard or Low seat base, featuring Factory or Aftermarket swivels, this mount is engineered to fit.
Product Overview

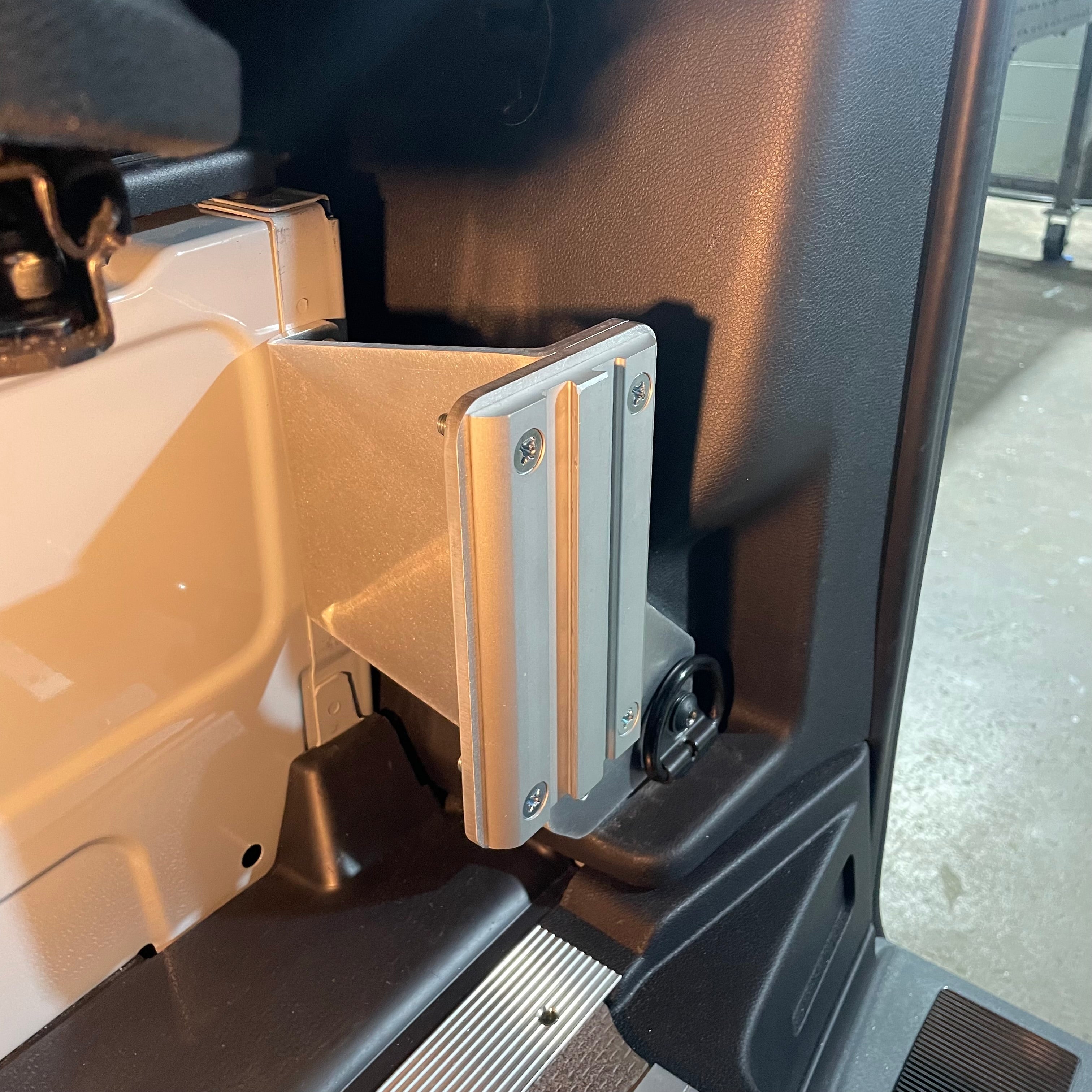

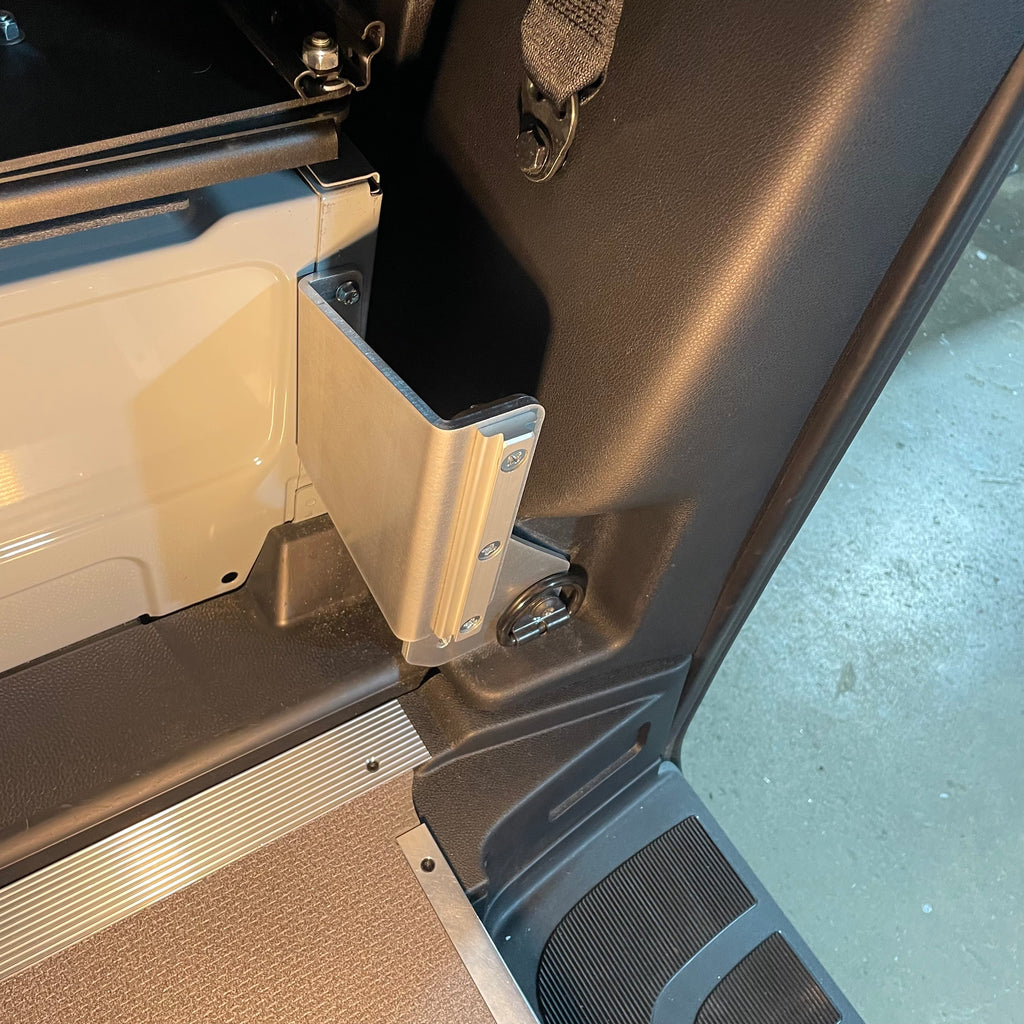

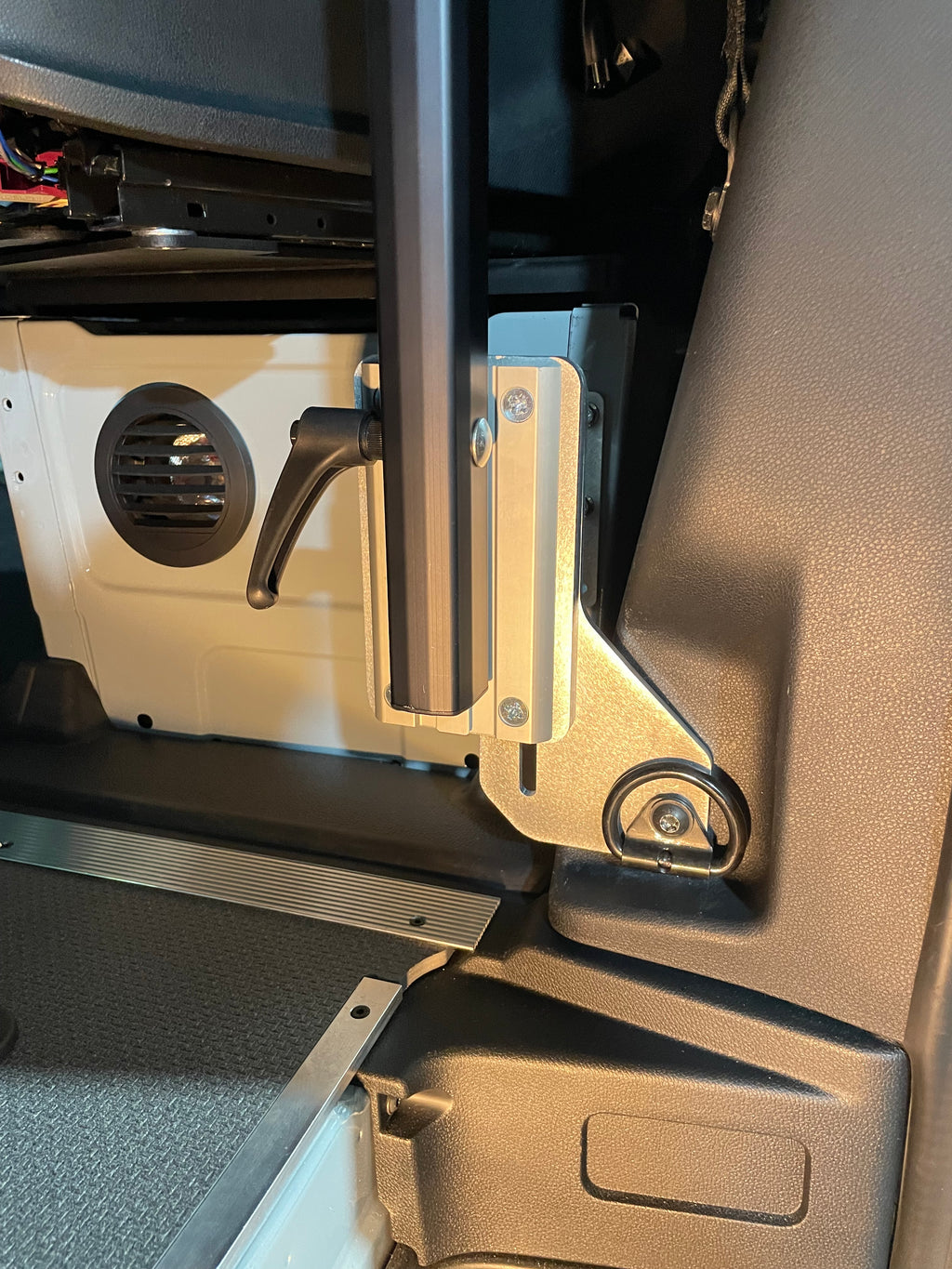

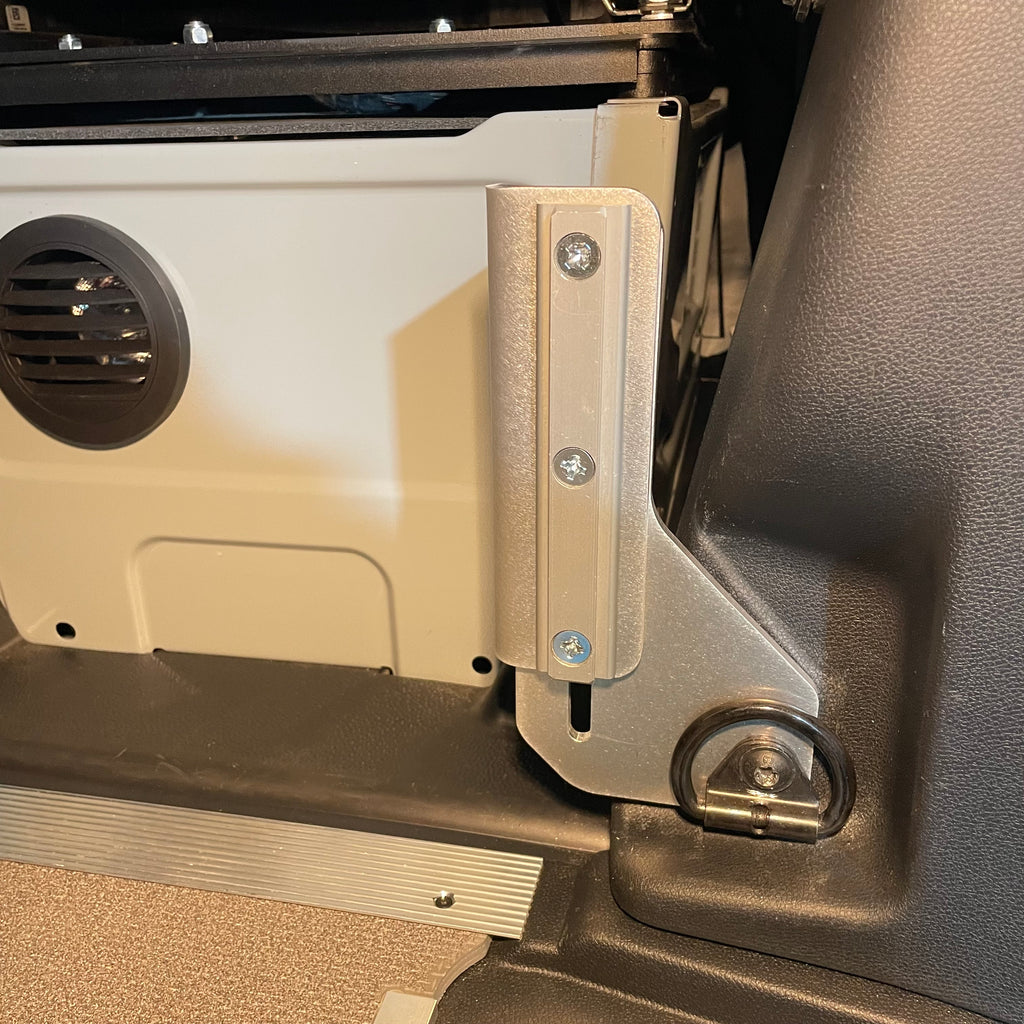

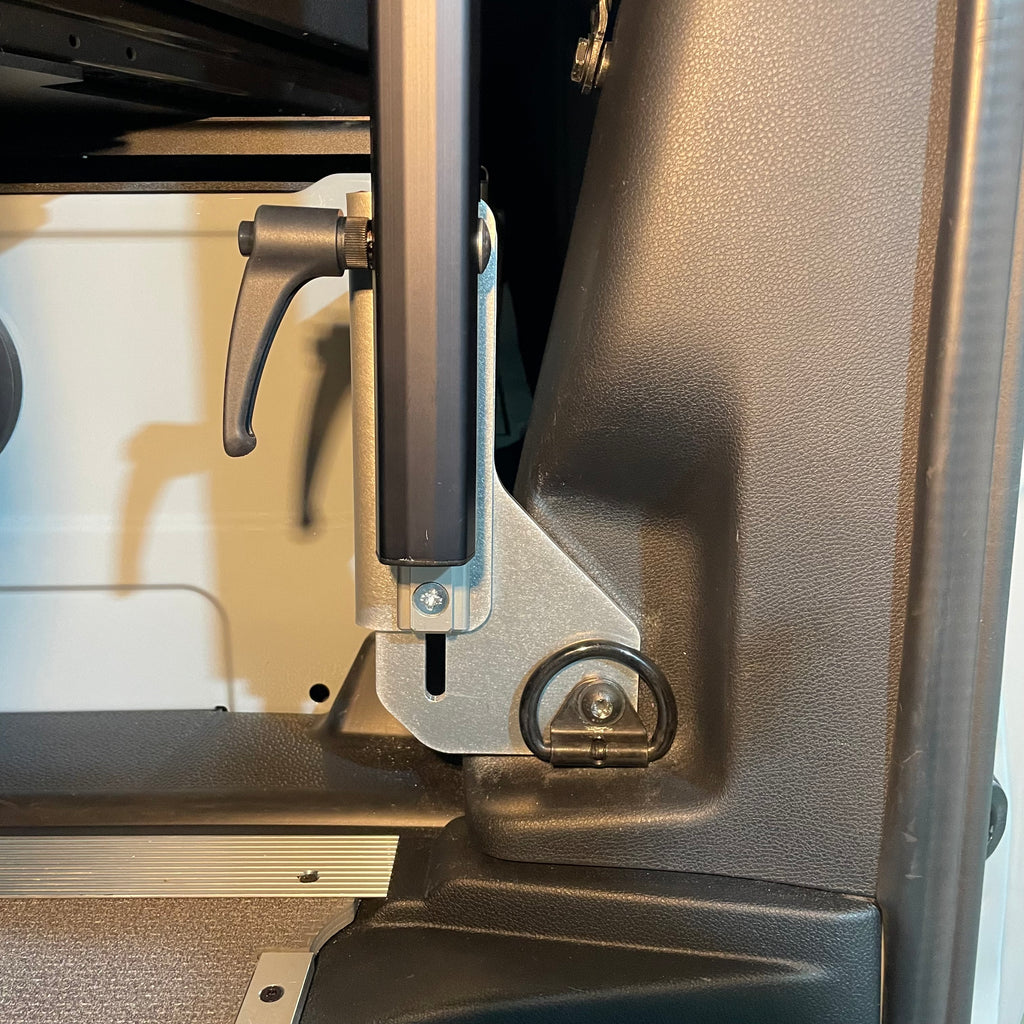

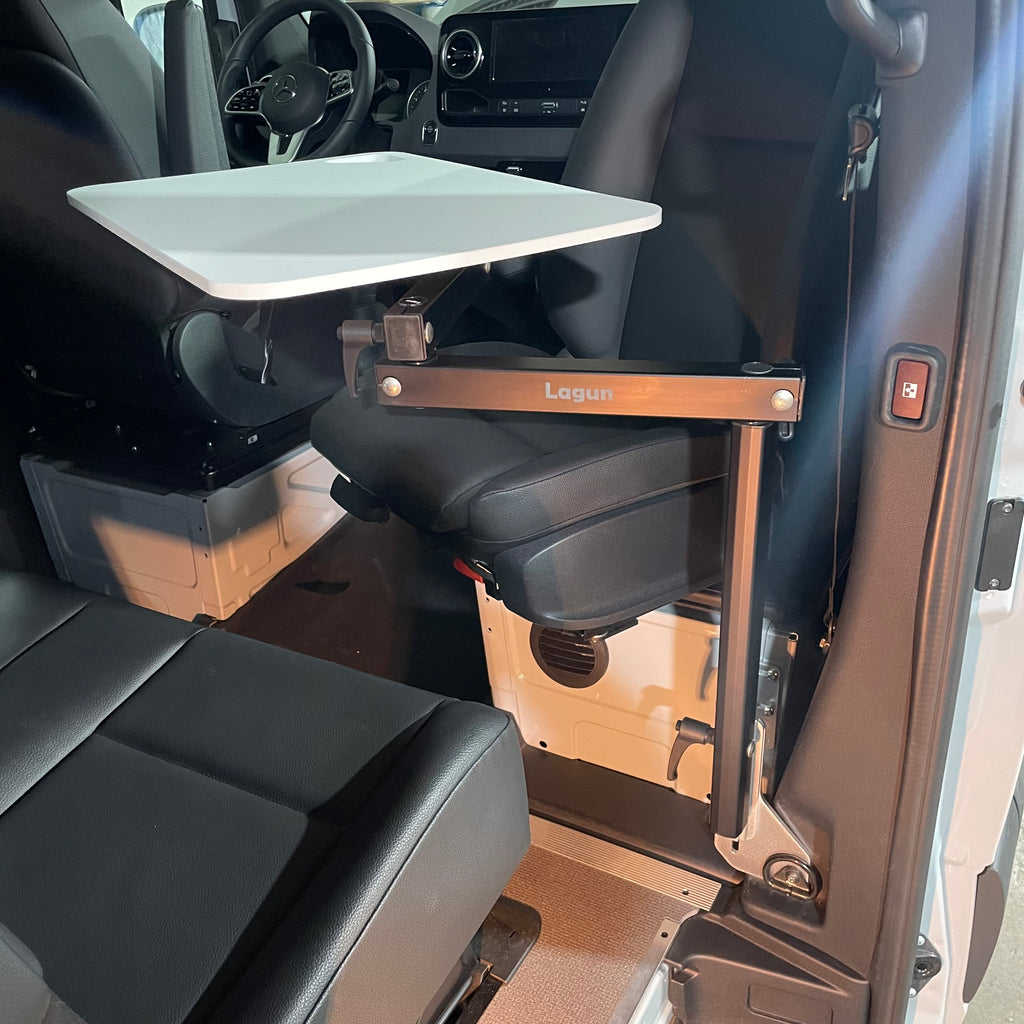

The Stoutlander B-Pillar Mount provides a rock-solid foundation for your Lagun Table system in 2007–2026 Mercedes Sprinter vans (NCV3 & VS30).
Machined from 0.25" raw 5052 aluminum, the mount spans the gap between the seat base and the B-pillar. When bolted on, it creates a rigid assembly for securely mounting your Lagun table leg.
Finish Note: The mount features a Raw Aluminum / Orbital Finish. We treat each part with a random orbital sander to create a uniform, matte industrial texture. These parts are hand finished and may bear light machining marks. It is ready to paint, powder coat, or leave as-is for a rugged, industrial look.
Installation & Drilling Requirements
Installation is simple, requiring only basic tools, but it varies slightly by van generation:
-
VS30 Models (2019–2026): No drilling required. This is a 100% bolt-on installation using the factory B-pillar D-ring bolt and existing bolt holes in the seat base.
-
NCV3 Models (2007–2018): Requires drilling two small bolt holes into the seat base. You will use the mount as a template to ensure perfect alignment with the B-pillar D-ring bolt, then mark and drill with a 7mm drill bit.
Choose Your Variant
Our mount is compatible with both standard and narrow Lagun plates. Please select the option that matches your Lagun Table hardware:
-
Standard/Wide Kit (3-Piece): Select this if you use the Standard Lagun Mounting Plate (approx. 3.5" or 89 mm wide). This variant includes a custom adapter plate to bridge the wider hole pattern of the standard Lagun hardware.
-

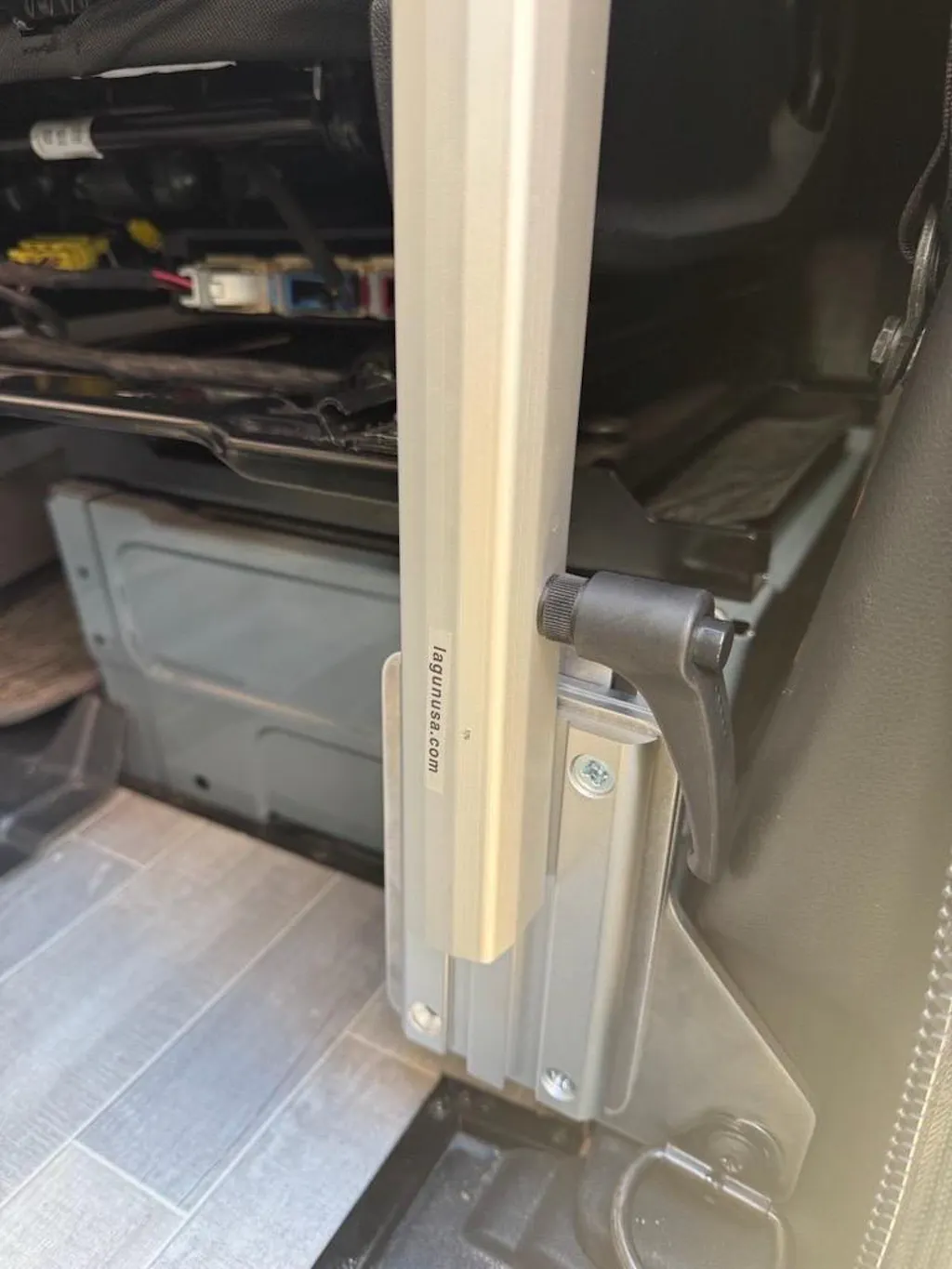

Narrow/Sliver Kit (2-Piece): Select this if you use the Lagun "Sliver" Mounting Plate (approx. 1.125" or 29 mm wide). This sleek setup bolts the Sliver plate directly to the B-pillar mount.
Compatibility & RV Fitment
-
Reversible: Fits both Driver and Passenger sides.
-

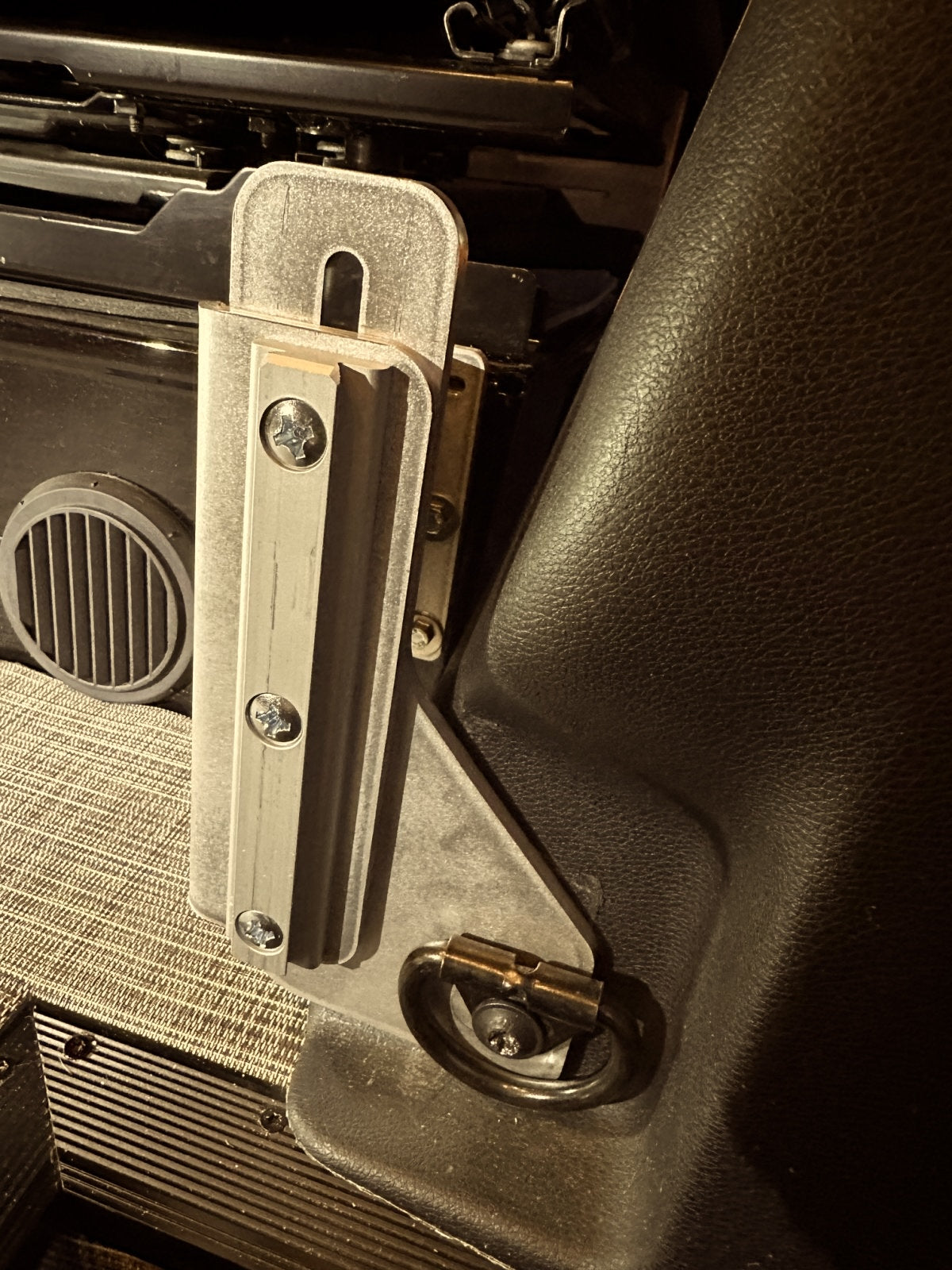

Seat Bases: Fits both Standard (High) and Factory Low (Option S87) Mercedes Sprinter seat bases.
-
Swivels: Compatible with OEM swivels and most aftermarket swivels (Scopema, Alpine Mechanisms, Mobiframe, etc.).
-
RV / Class B Van Owners: Fully compatible with factory-built adventure vans such as the Winnebago Revel, Storyteller Overland, Jayco Terrain, Thor Tranquility, and Coachmen Galleria, as long as there is access to the B-pillar's D-ring bolt hole and the outboard corner of the seat base.
FITMENT VERIFICATION REQUIRED Because RV builders often add custom trim, plastics, or upholstery over the seat bases, you must verify access before ordering:
-
B-Pillar: You must have access to the factory D-Ring bolt at the bottom of the pillar.
-
Seat Base: You must have clear access to the rear, outboard side of the seat base (closest to the B-Pillar).
What's Included
-
Standard/Wide Variant: (1) 2-Piece Aluminum Mount Set, (1) Wide Adapter Plate, (1) Stainless Hardware Pack.
-
Narrow/Sliver Variant: (1) 2-Piece Aluminum Mount Set, (1) Stainless Hardware Pack.
-
Note: The Lagun Table System (Arm, Plate, and Table) is not included.
Made in USA by Stoutlander. Patent Pending.
